Descripción

• Especificaciones:

  Procesador

  AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors
  (Please refer «CPU Support List» for more information.)

  Chipset

  AMD A520

  Memoria

  2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  Dual channel memory architecture
  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for Extreme Memory Profile (XMP) memory modules
  (Please refer «Memory Support List» for more information.)

  Gráfica Integrada

  Integrated Graphics Processor:
  1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
  * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
  Maximum shared memory of 16 GB

  Audio

  Realtek® Audio CODEC
  High Definition Audio
  2/4/5.1/7.1-channel
  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

  LAN

  Realtek® GbE LAN chip (1 Gbps/100 Mbps)

  Zócalos de Expansión

  CPU:
  1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
  Chipset:
  1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

  Interfaz de almacenamiento

  CPU:
  1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
  Chipset:
  4 x SATA 6Gb/s connectors
  Support for RAID 0, RAID 1, and RAID 10

  USB

  CPU:
  4 x USB 3.2 Gen 1 ports on the back panel
  Chipset:
  2 x USB 3.2 Gen 1 ports available through the internal USB header
  6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

  Conectores Internos E/S

  1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  1 x system fan header
  1 x M.2 Socket 3 connector
  4 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x USB 3.2 Gen 1 header
  2 x USB 2.0/1.1 headers
  1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
  1 x speaker header
  1 x Clear CMOS jumper
  1 x chassis intrusion header

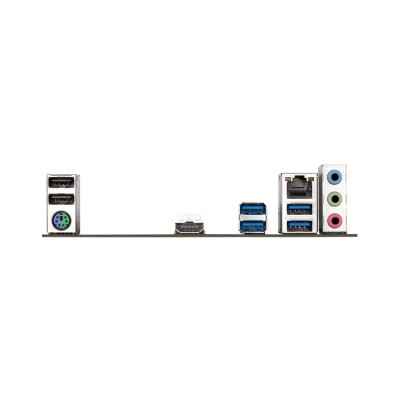

  Panel E/S Trasero

  1 x PS/2 keyboard/mouse port
  1 x HDMI port
  4 x USB 3.2 Gen 1 ports
  2 x USB 2.0/1.1 ports
  1 x RJ-45 port
  3 x audio jacks

  Controlador E/S

  iTE® I/O Controller Chip

  BIOS

  1 x 128 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

  Formato

  Micro ATX Form Factor; 23.3cm x 19.8cm
